Seating · HUB · REV 2026-10-06
Seat catalogue
A chair is not chosen from a picture. These cards carry what the family sheet printed: ES-500, FRESH and MICRA for stadia, ATENAS and OTELO for halls, KING and ROMA for cinema, and the BoxTech line from Kairos to Carmen. The fire class stays in the report of the build-up.
What this gate is
Two sheets do not mix. The dimension sheet has figures we show. The test sheet has a grade we do not show, because a change of fabric or foam stops the transfer. Stadium names sometimes appear in the factory file as its own references. They are not a BoxTech O2mea job list.
The BoxTech line on this page has no printed centres. The axis is fixed on the stand section. A catalogue image, including a product drawing, is not a row measurement.
What is published now
Stadia
Blow-moulded HDPE, injection, and perforated polymer. ES-500, ES-100, FRESH, THOR.
Halls and theatres
Upholstery and shell. ATENAS, BRISTOL, MOZART, OTELO, ECO.
Cinema
Longer depth and recline. The KING RECLINER R10 sheet extends depth from 95 to 155 cm.
BoxTech
Kairos, Chronos, Carmen, Gaudí. No axis figure on the card.
When to open this gate
Before the chair count
The centre changes the count in the same length.
Before a fire claim
Ask for the build-up report, not the family name.
When a stand folds
MICRA FLEXING and Onik are named for tiers that close. Read the telescopic page.
How to read the subject
- 01
Name the room: stadium, hall, cinema, hospitality.
- 02
Read centres and depth. Compare them with the row width, not with the picture.
- 03
Separate an exposed stadium seat from an upholstered hall seat.
- 04
Return to the sightline and the aisle before the colour is adopted.
What this gate does not do
Copying a stadium off the factory sheet
The reference is the factory’s. It is not a BoxTech O2mea contract.
An unassembled weight treated as installed
The sheet says not assembled where it applies. Do not drop the words.
13 cm read as the chair height
On DIAMOND the cell is printed that way and the text speaks of a +13 rest. Check the drawing.
The figures are from the published sheet for that seat family: centres, depth, height, and weight. They are not a fire certificate, not a stadium capacity, and not a completed project in a client’s name. If the factory sheet names a test grade, ask for the report of the supplied build-up. Do not copy it off this card.
Hospitality
ARGENTINA
Upholstered seat with curved lines and no sharp edges. Polypropylene shell over UNIBLOCK 2, for VIP and grandstands.
- Centres
- 52-54 cm
- Depth
- 54 cm
- Height
- 95 cm
- Weight
- 18 Kg
Halls
ARGENTINA PLUS
Argentina Plus with a 70 mm side panel and LYF or wood options for row ends.
- Centres
- 55 - 57 cm
- Depth
- 50.5 cm
- Height
- 95 cm
- Weight
- 16 Kg
Hospitality
ARGENTINA V03
Centres 55–57 cm and depth 61 cm, with a cup holder built into the arm.
- Centres
- 55-57 cm
- Depth
- 61 cm
- Height
- 95 cm
- Weight
- 16.90 Kg
Halls
ATENAS
UNIBLOCK 2 system, centres 52–54 cm, for theatres and halls.
- Centres
- 52-54 cm
- Depth
- 55 cm
- Height
- 95 cm
- Weight
- 15.80 Kg
Halls

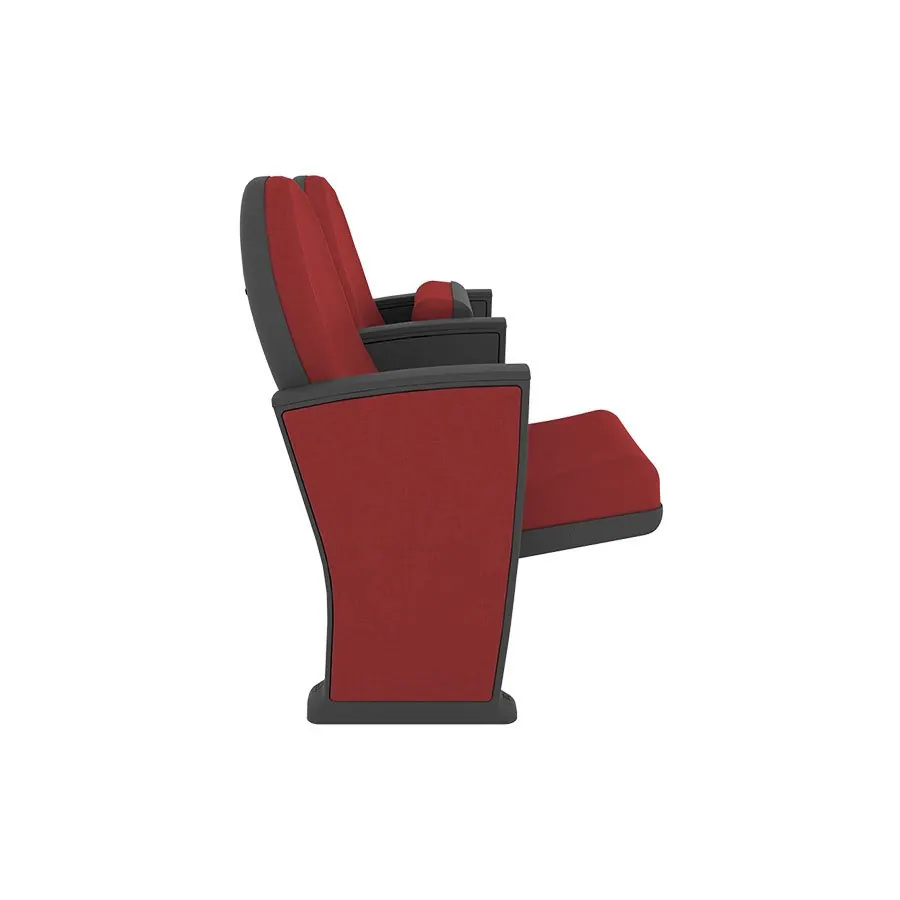

ATENAS PLUS
70 mm panel with LYF or wood options for arms and row ends.
- Centres
- 55 - 57 cm
- Depth
- 50.5 cm
- Height
- 95 cm
- Weight
- 15.80 Kg
Hospitality

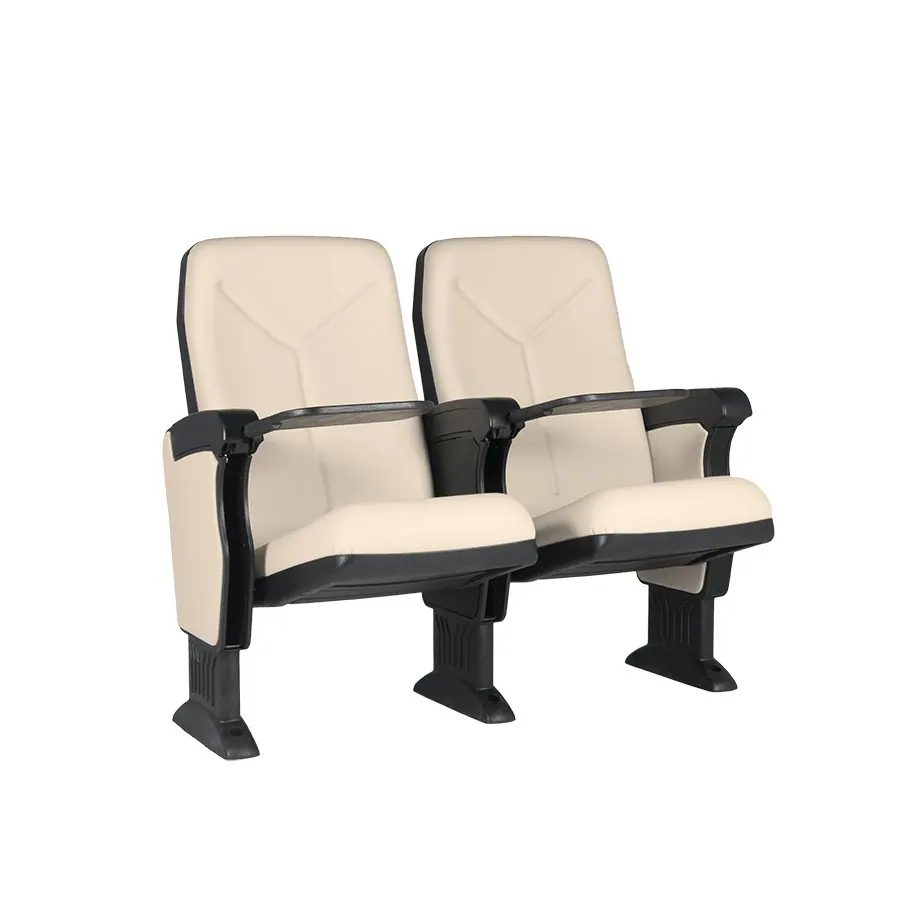

BOGART PL
Writing tablet in anti-panic polystyrene and an internal steel frame, for universities and halls.
- Centres
- 54-56 cm
- Depth
- 50 cm
- Height
- 95 cm
- Weight
- —
Halls
BRISTOL PLUS
LYF three-dimensional system or wood, 70 mm side panel, for halls.
- Centres
- 55 - 56 cm
- Depth
- 54 cm
- Height
- 95 cm
- Weight
- 17 Kg
Halls
BRISTOL PLUS PL
Bristol Plus with a row end and upholstery, LYF, or wood options.
- Centres
- 55 - 56 cm
- Depth
- 54 cm
- Height
- 95 cm
- Weight
- —
Cinema
DIAMOND V05
Depth 73.5 cm and a headrest noted as +13 cm. The height cell is printed as on the sheet.
- Centres
- 55-58 cm
- Depth
- 73.5 cm
- Height
- 13 cm
- Weight
- 18.20 Kg
Halls

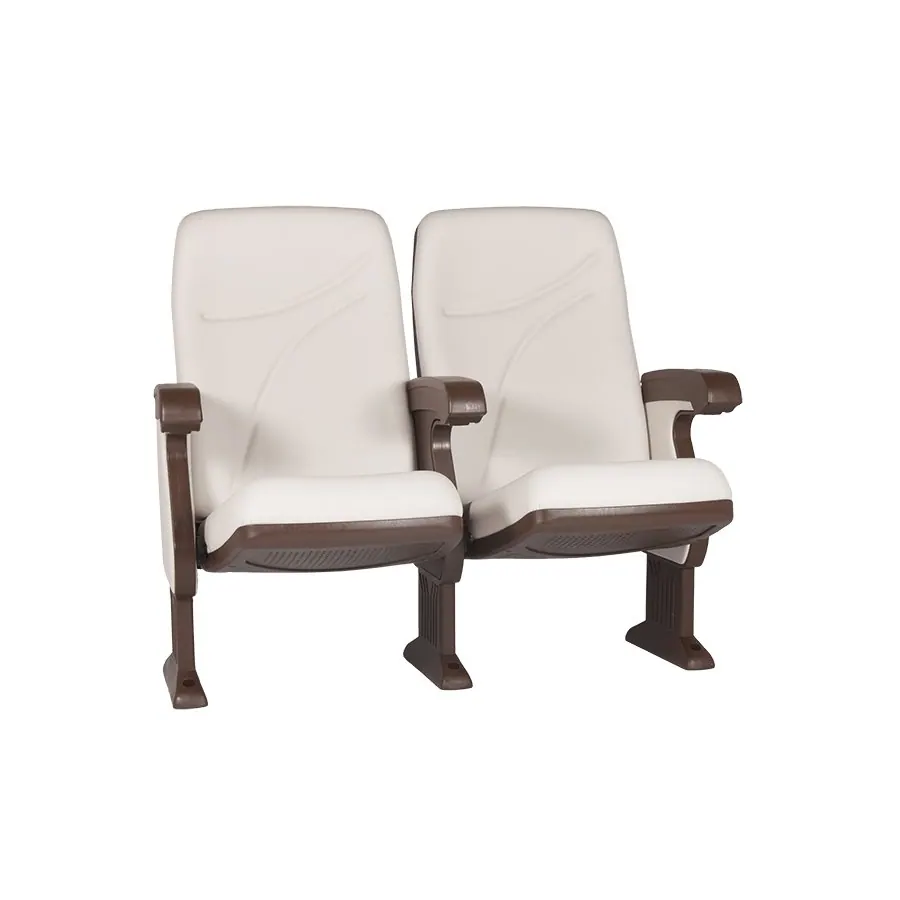

ECO 100
ECO line: a wood appearance without consuming wood, UNIBLOCK 2, very low maintenance.
- Centres
- 52-54 cm
- Depth
- 52 cm
- Height
- 95 cm
- Weight
- 16.80 Kg
Halls

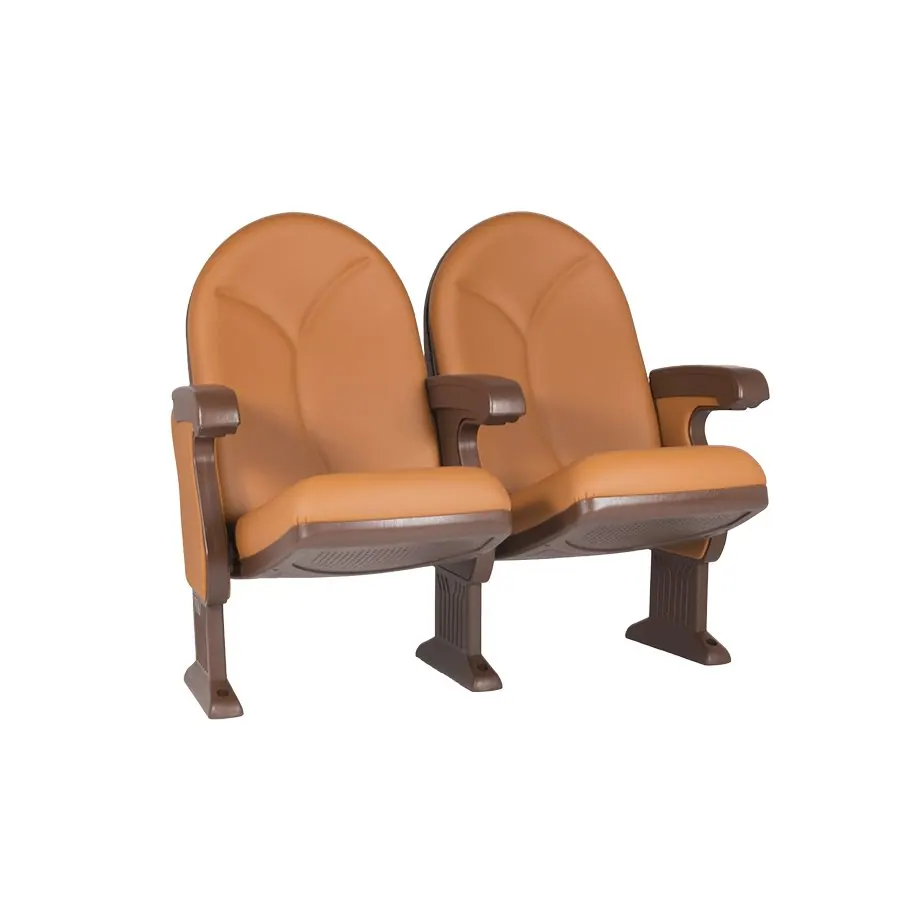

ECO 200
ECO 200, depth 55 cm, weight 15.8 kg, the same resource-saving idea.
- Centres
- 52-54 cm
- Depth
- 55 cm
- Height
- 95 cm
- Weight
- 15.80 Kg
Stadiums

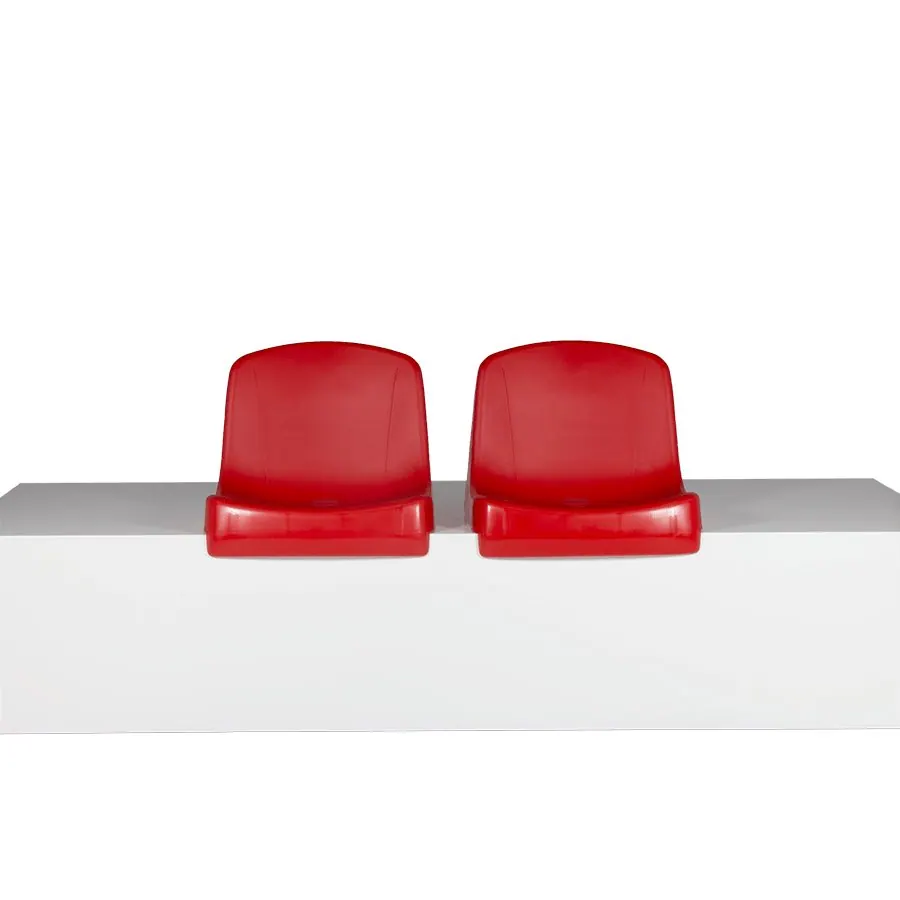

ES-100
Injected polypropylene monobloc with a double inner wall, about 2 kg, with liquid drainage.
- Centres
- 46-52 cm
- Depth
- 40/45/48 cm
- Height
- 35.5 cm
- Weight
- 2.00 Kg
Stadiums
ES-500
Blow-moulded textured HDPE stadium seat. Silent maintenance-free spring tip-up. Sheet allows indoor and outdoor, including covered VIP.
- Centres
- 48-56 cm
- Depth
- 40 cm
- Height
- 86 cm
- Weight
- 10.00 Kg
Stadiums
ES-500 TT
ES-500 with fabric over open-cell polyurethane foam at 40 kg/m³, blow-moulded shell retained. Weight is not-assembled.
- Centres
- 48 - 56 cm
- Depth
- 40 cm
- Height
- 86 cm
- Weight
- 10.40 Kg not assembled
Stadiums

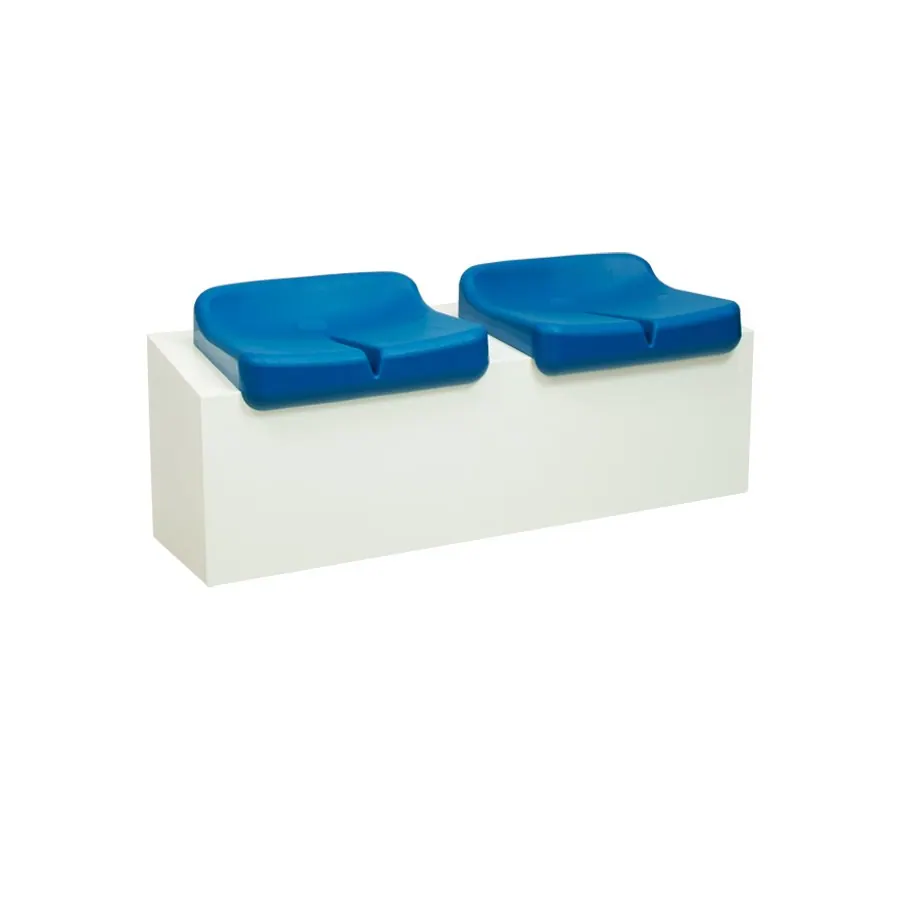

ES-60
Low backless monobloc, about 1 kg, three concealed fixings, aligns with the stand fascia.
- Centres
- 41,9 cm
- Depth
- 38,8 cm
- Height
- 9,2 cm
- Weight
- 1.00 Kg
Stadiums
ES-700
Same logic as ES-500 with a taller back, sheet height 95 cm.
- Centres
- 48-55 cm
- Depth
- 40 cm
- Height
- 95 cm
- Weight
- 11.00 Kg
Stadiums
ES-700 TT
ES-700 with full seat and back upholstery over 40 kg/m³ foam.
- Centres
- 53 cm
- Depth
- 40 cm
- Height
- 95 cm
- Weight
- 11.30 Kg not assembled
Stadiums
FRESH
Perforated polypropylene for ventilation in hot humid air, silent spring tip.
- Centres
- 50-56 cm
- Depth
- 40 cm
- Height
- 86 cm
- Weight
- 8.80 Kg
Cinema
KING DIAMOND V09
Premium rows: depth 84 cm, sheet height 110 cm.
- Centres
- 60 a 62 cm
- Depth
- 84 cm
- Height
- 110 cm
- Weight
- —
Halls

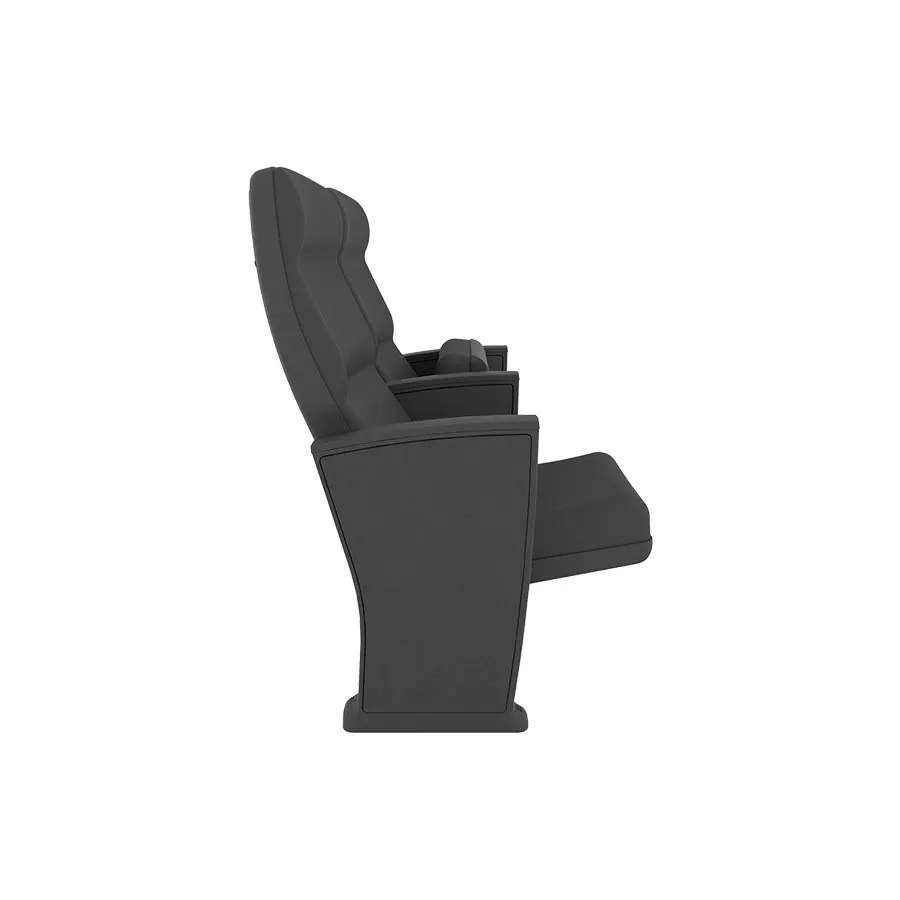

KING PLUS
Hall seat, centres 59–61 cm, height 111 cm, 70 mm panel.
- Centres
- 59 - 61 cm
- Depth
- 60 cm
- Height
- 111 cm
- Weight
- 19.20 Kg
Cinema
KING RECLINER R10
Powered recliner with a motorised footrest. Depth extends from 95 to 155 cm. Weight 68 kg.
- Centres
- 68 cm
- Depth
- 95 – 155 cm
- Height
- 106 cm
- Weight
- 68 kg
Cinema
KING RUBY V07
Premium cinema, centres 60–62 cm, depth 84 cm, height 110 cm.
- Centres
- 60 a 62 cm
- Depth
- 84 cm
- Height
- 110 cm
- Weight
- —
Hospitality

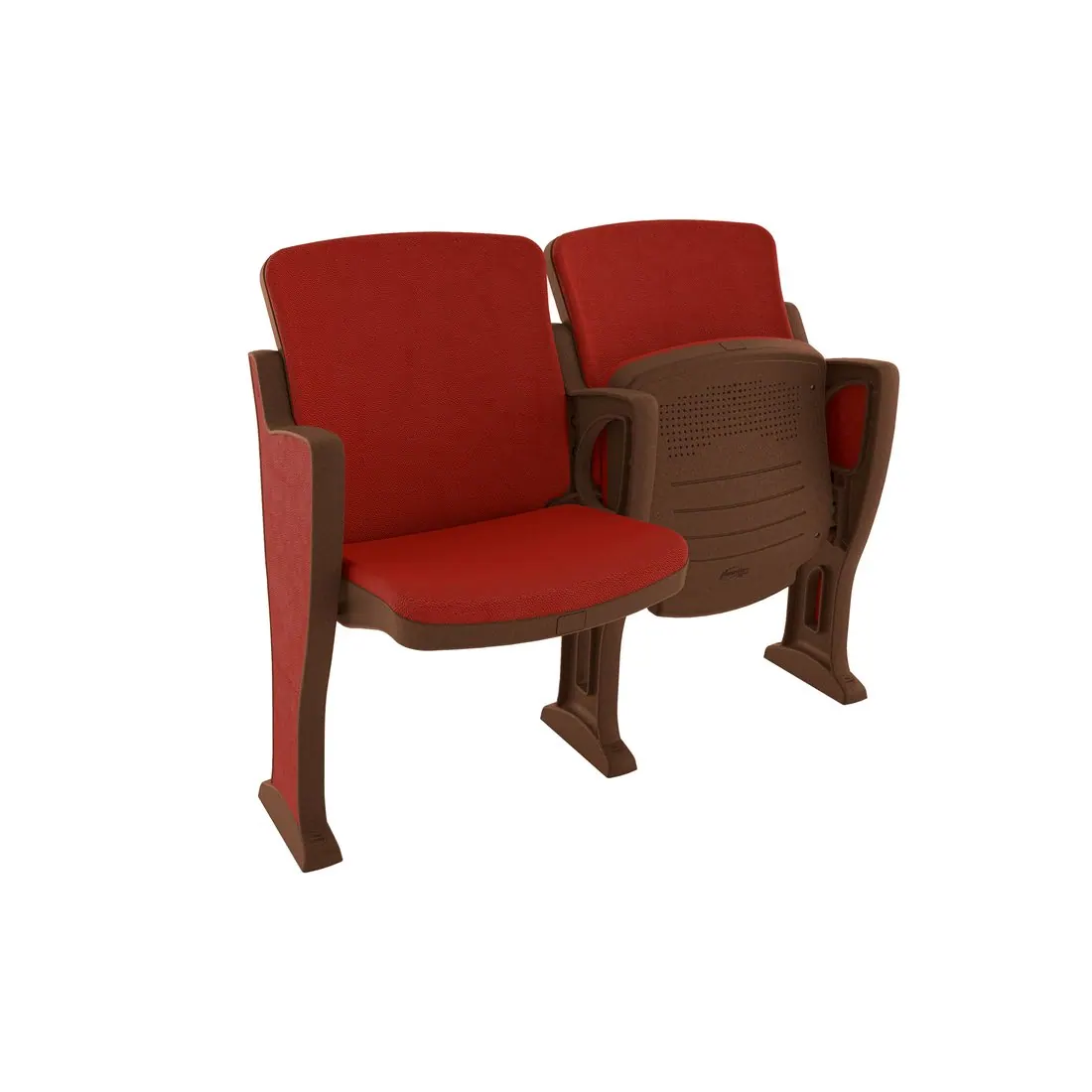

MAIA
Flexible centres on UNIBLOCK 2. Back density 55 and seat 65 kg/m³. Double spring tip. Weight not assembled.
- Centres
- 50 - 52/54 - 55 cm
- Depth
- 40 cm
- Height
- 86,5 cm
- Weight
- 10 Kg not assembled
Hospitality
MAIA PL
Maia with a longer back, centres 54–55 cm, depth 55 cm.
- Centres
- 54 - 55 cm
- Depth
- 55 cm
- Height
- 86 cm
- Weight
- —
Stadiums

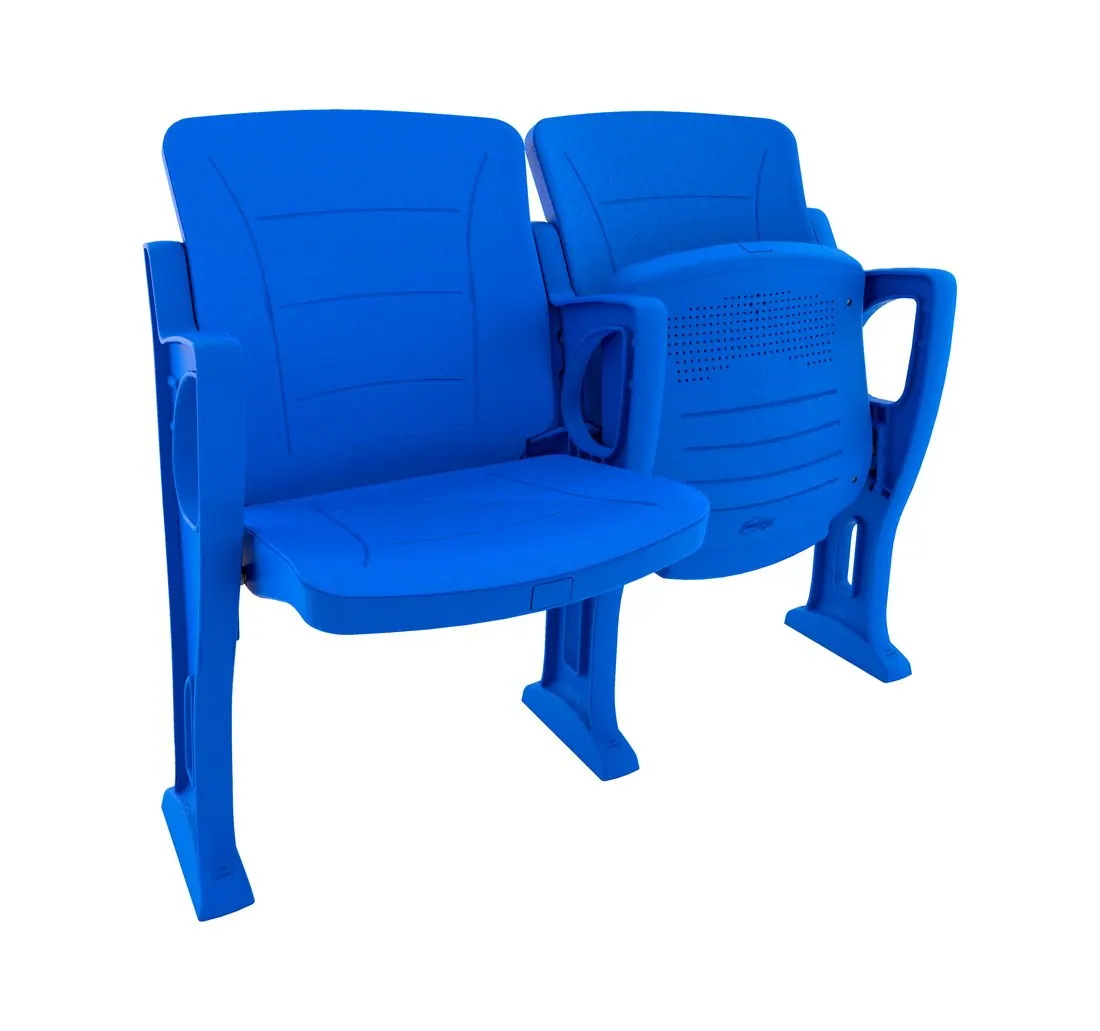

MAIA SPORT
Two injected parts: rear shell and front cover. Tip by gravity.
- Centres
- 50-52 / 54-55 cm
- Depth
- 50 cm
- Height
- 86,5 cm
- Weight
- —
Stadiums
MICRA
For tight rows: as the pan opens, the back tilts and the arms rise in one movement.
- Centres
- 52 cm
- Depth
- 18 cm
- Height
- 76.5 cm
- Weight
- 17.00 Kg
Stadiums
MICRA 100
Upholstered on MDF with open-cell foam. Compressed height 11 cm for stands.
- Centres
- 48-52 cm
- Depth
- 53 cm
- Height
- 11 cm
- Weight
- 15.00 Kg
Stadiums

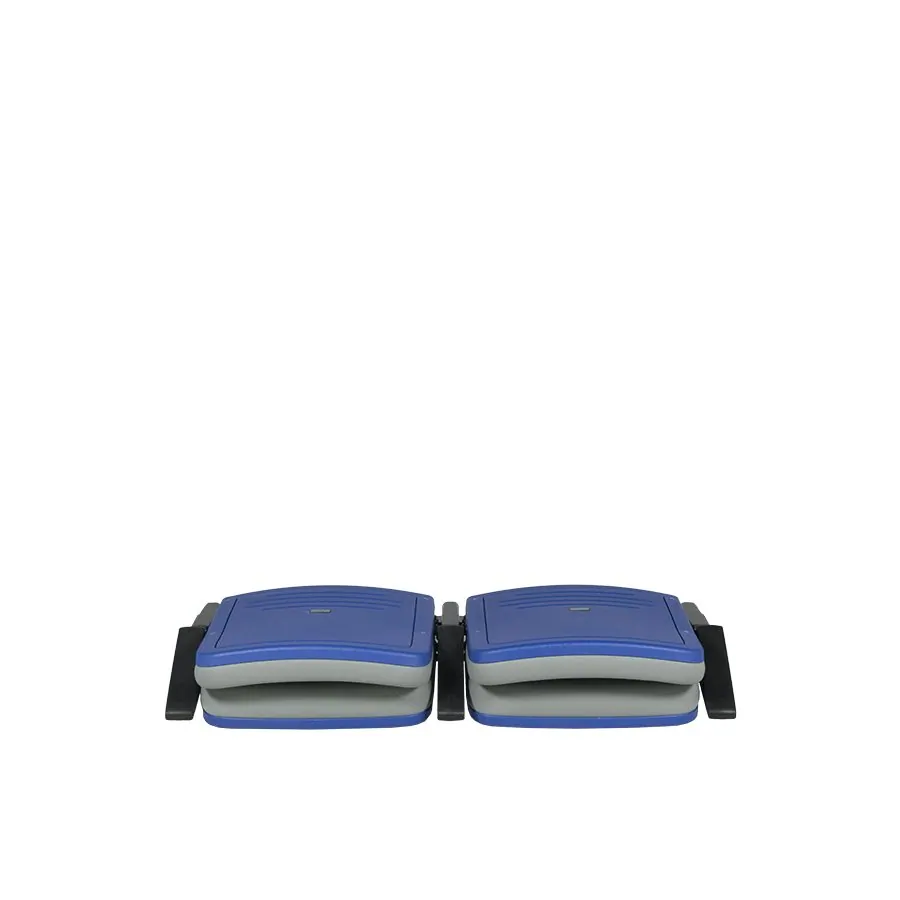

MICRA FLEXING
Micra fold fully forward over the tread, manual or powered, for telescopic tiers.
- Centres
- 52 cm
- Depth
- 18 cm
- Height
- 76.5 cm
- Weight
- —
Stadiums

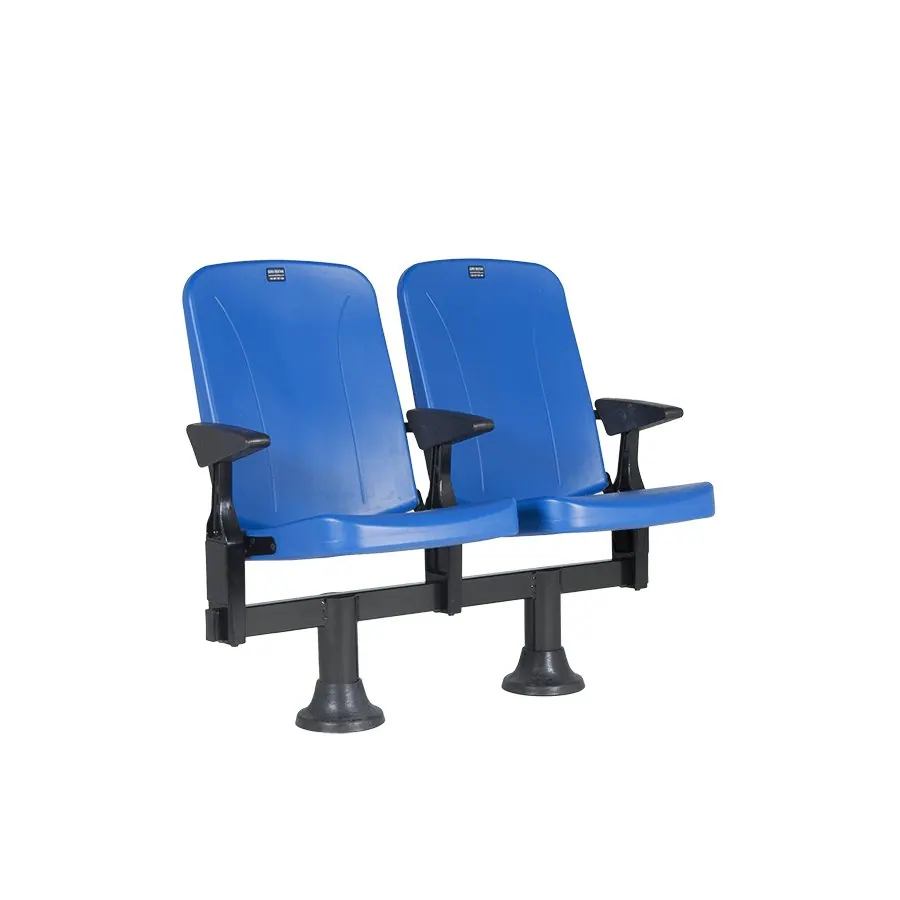

MICRA TEK
Blow-moulded HDPE back and pan, Micra movement, aluminium frame and steel bar.
- Centres
- 50 cm
- Depth
- 15.5 cm
- Height
- 83.5 cm
- Weight
- 15.00 Kg
Stadiums
MICRA TEK 500
Back tip without a spring, concealed floor fixing, optional polypropylene arm.
- Centres
- 48-52 cm
- Depth
- 58 cm
- Height
- 15.5 cm
- Weight
- 15.00 Kg
Hospitality
MONTREAL CLUB
Integrated headrest, sheet height 113 cm, for lounges and clubs.
- Centres
- 52-54 cm
- Depth
- 56.5 cm
- Height
- 113 cm
- Weight
- 17.70 Kg
Hospitality
MONTREAL CLUB COMFORT V07
Comfort version of Montreal Club with fuller rests for long sessions.
- Centres
- 58 - 63 cm
- Depth
- 81 cm
- Height
- 113 cm
- Weight
- 19.70 Kg
Halls
MONTREAL PLUS
Height 100 cm and a 70 mm side panel.
- Centres
- 55 - 57 cm
- Depth
- 52 cm
- Height
- 100 cm
- Weight
- 14.5 Kg
Cinema

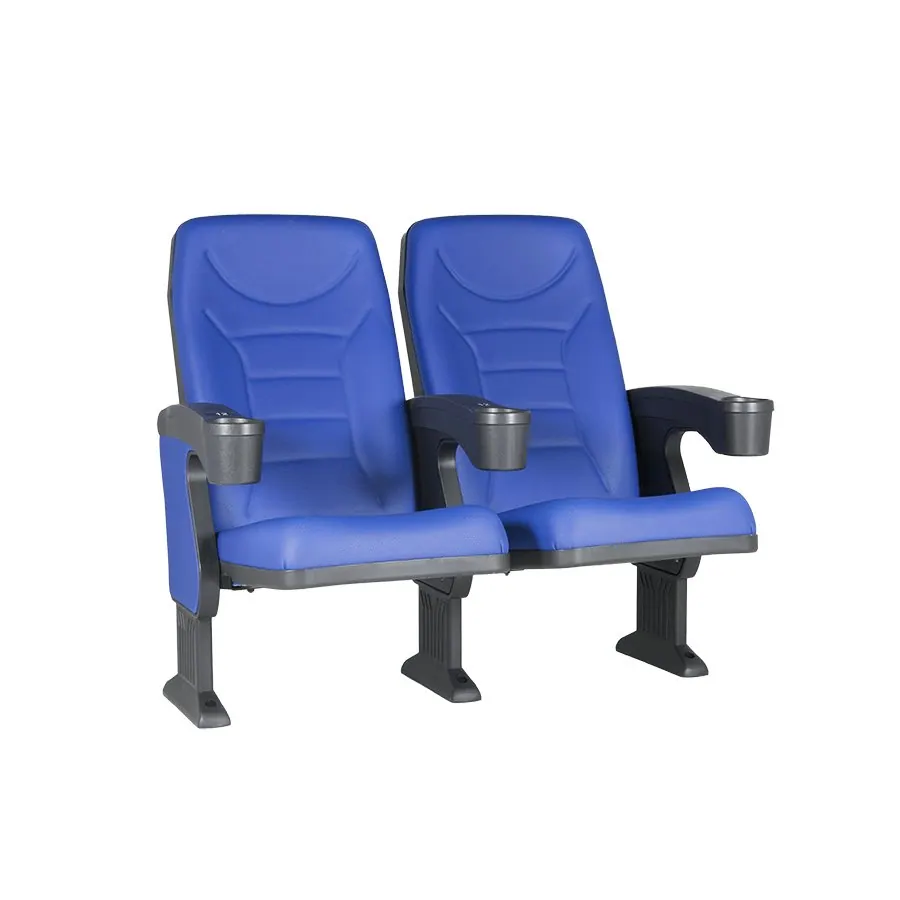

MONTREAL V05
Depth 79 cm and an integrated cup holder. Weight 17.4 kg.
- Centres
- 54-56 cm
- Depth
- 79 cm
- Height
- 100 cm
- Weight
- 17.40 Kg
Halls
MOZART PLUS
Upholstery and LYF or wood shell. Double maintenance-free spring tip.
- Centres
- 55 - 57 cm
- Depth
- 52 cm
- Height
- 95 cm
- Weight
- 17.5 Kg
Halls

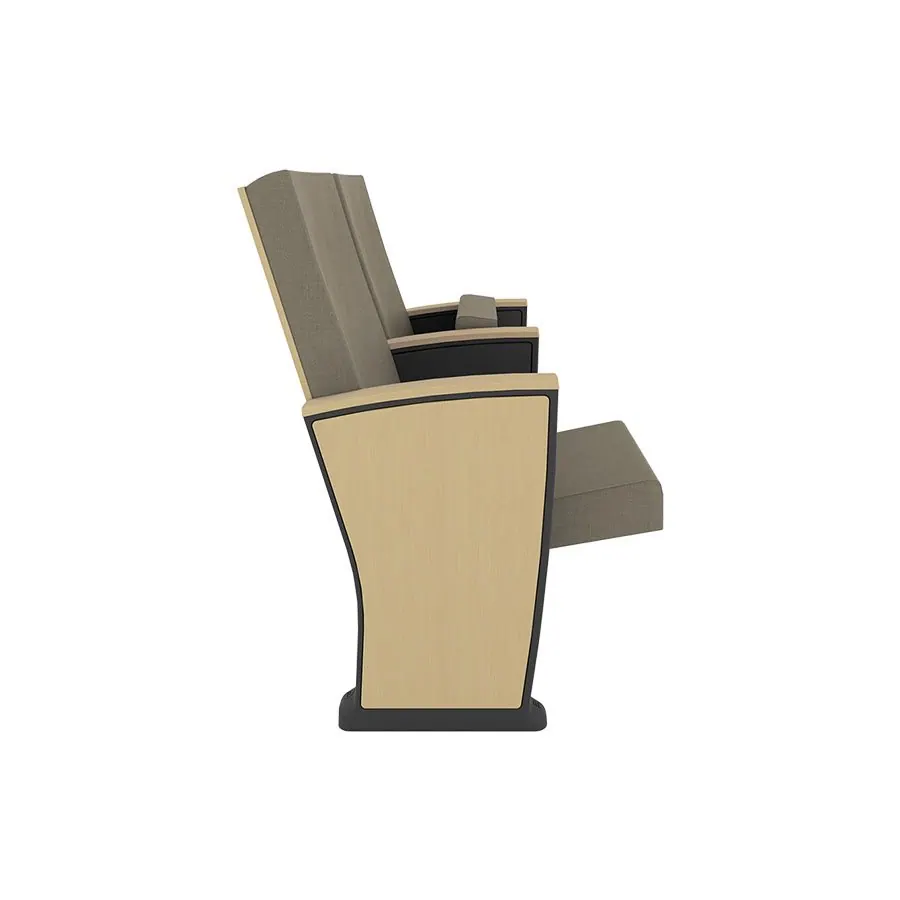

NUS PLUS
Universities and multipurpose halls, LYF protection on the back.
- Centres
- 55 - 57 cm
- Depth
- 52.5 cm
- Height
- 95 cm
- Weight
- —
Halls

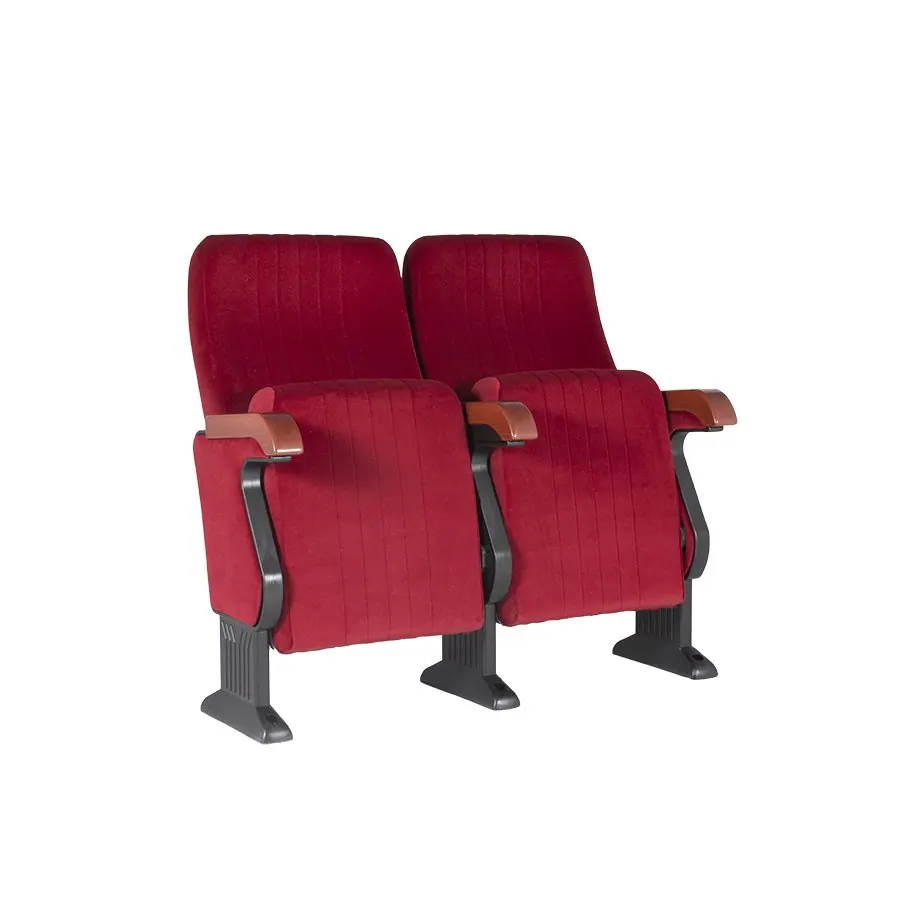

OTELO
Painted solid-wood cap over the upholstery, for classical halls.
- Centres
- 52-54 cm
- Depth
- 56 cm
- Height
- 95 cm
- Weight
- 17.50 Kg
Halls

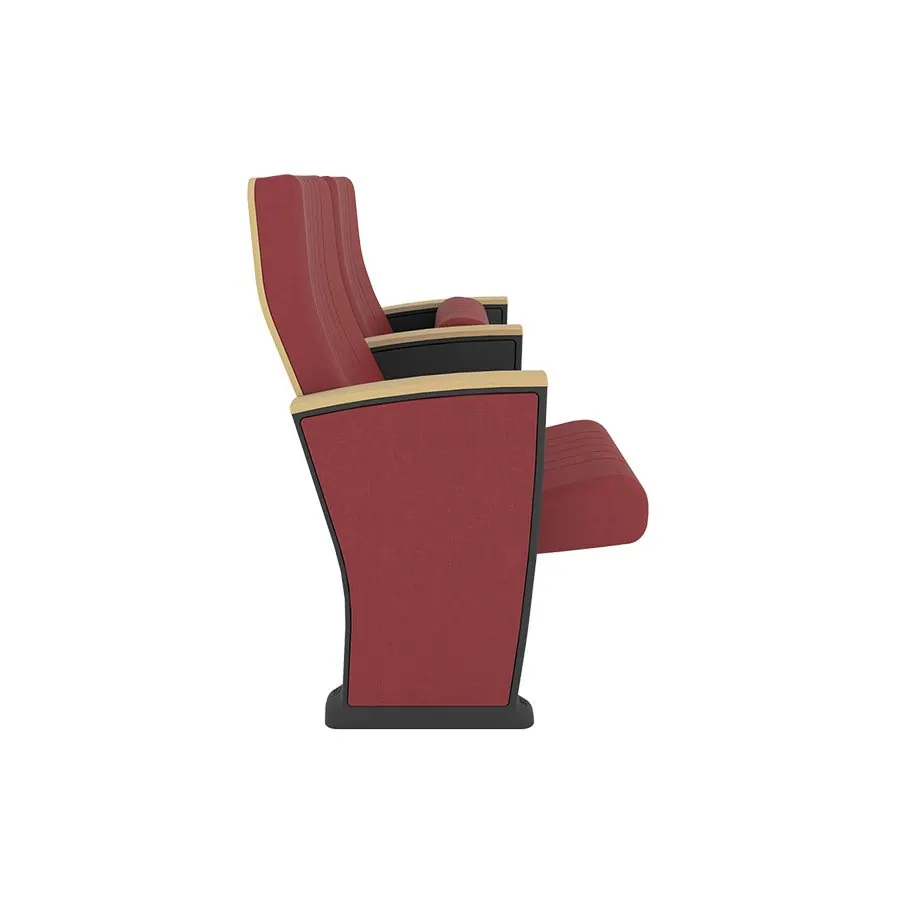

OTELO PLUS
70 mm panel and a three-dimensional LYF system.
- Centres
- 55 - 57 cm
- Depth
- 52 cm
- Height
- 95 cm
- Weight
- —
Cinema
PRINCE RECLINER R10
Electric footrest, fully upholstered timber frame.
- Centres
- 67 cm
- Depth
- 93 – 155 cm
- Height
- 110 cm
- Weight
- —
Hospitality

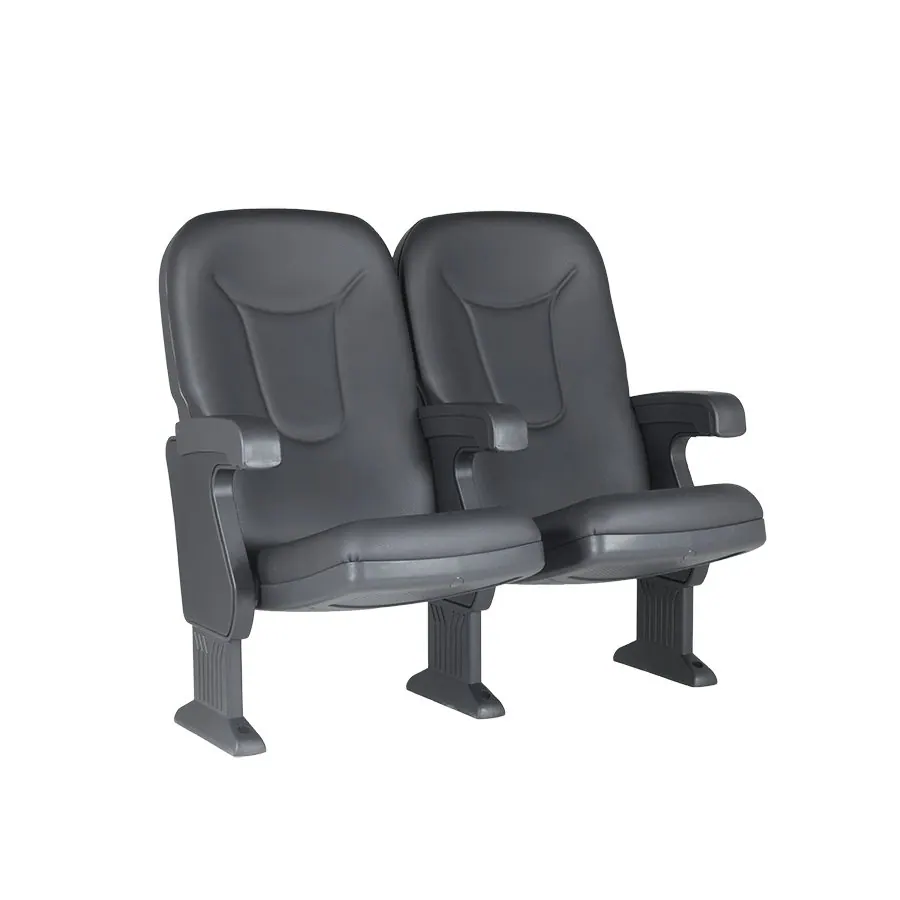

ROMA
UNIBLOCK 2, densities 55/65, 40 mm side panel with upholstered ends.
- Centres
- 54-56 cm
- Depth
- 57 cm
- Height
- 100 cm
- Weight
- 18.20 Kg
Cinema
ROMA COMFORT V07
Greater depth for cinema and halls.
- Centres
- 58 - 63 cm
- Depth
- 81 cm
- Height
- 100 + 15 cm
- Weight
- 20.10 Kg
Cinema
ROMA COMFORT V09 H
Roma Comfort with a headrest. Centres up to 63 cm. Height printed as 100+15 cm.
- Centres
- 58-63 cm
- Depth
- 81 cm
- Height
- 100 + 15 cm
- Weight
- 20.30 Kg
Cinema
ROMA D-BOX
Roma prepared for a D-BOX motion system locked to picture and sound. The seat stays in the open position.
- Centres
- 68 cm
- Depth
- 77.5 cm
- Height
- 105.5 + 15 cm
- Weight
- 18.50 Kg
Stadiums
THOR
Closed injected polypropylene. Tip by gravity, no spring. Weight 6.3 kg not assembled.
- Centres
- 48 a 54 cm
- Depth
- 40 cm
- Height
- 86 cm
- Weight
- 6.30 Kg not assembled
BoxTech line
Kairos
General stadium seat from the BoxTech catalogue. Polymer, tip-up. Centres are fixed on the section, not printed here.
No centres printed on this line. They are fixed on the section.
BoxTech line

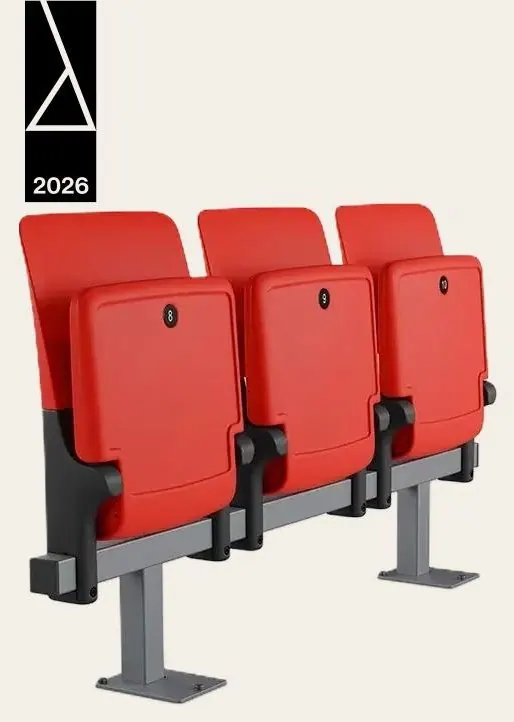

Chronos
Polymer for a dense stand. One maintenance pattern when the count is in the thousands.
No centres printed on this line. They are fixed on the section.
BoxTech line
Onik
Short riser width for a hall and a telescopic stand, so the system can close.
No centres printed on this line. They are fixed on the section.
BoxTech line
Onik+
Hospitality version of Onik. A fuller back, harder use than a quiet theatre chair.
No centres printed on this line. They are fixed on the section.
BoxTech line
Amik
Stadium family 310, 312 and 313. Chosen by section, not by the picture alone.
No centres printed on this line. They are fixed on the section.
BoxTech line
Arena 302
Multipurpose hall seat. The catalogue also places it in teaching rooms.
No centres printed on this line. They are fixed on the section.
BoxTech line

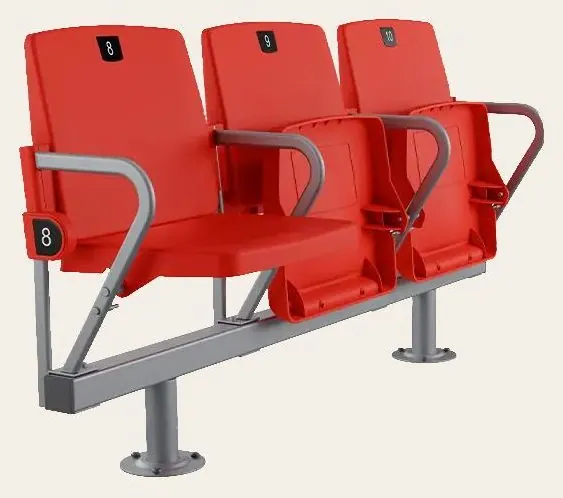

Stadium
The classic stadium line beside Kairos and Chronos.
No centres printed on this line. They are fixed on the section.
BoxTech line
Carmen
Upholstered auditorium chair. The mechanism is judged on quietness, not on stand speed.
No centres printed on this line. They are fixed on the section.
BoxTech line
Gaudí
A hall seat with a clearer identity, when the shape is part of the architecture.
No centres printed on this line. They are fixed on the section.
BoxTech line
Alicia
Another theatre family. Compare it with Carmen and Gaudí on spacing, not on colour.
No centres printed on this line. They are fixed on the section.
BoxTech line
Flex 6035
A flexible system for a room whose rows change. From the Flex family.
No centres printed on this line. They are fixed on the section.
BoxTech line
Flame
Designed seat, number 13107. For a room where the chair is seen before it is counted.
No centres printed on this line. They are fixed on the section.
BoxTech line

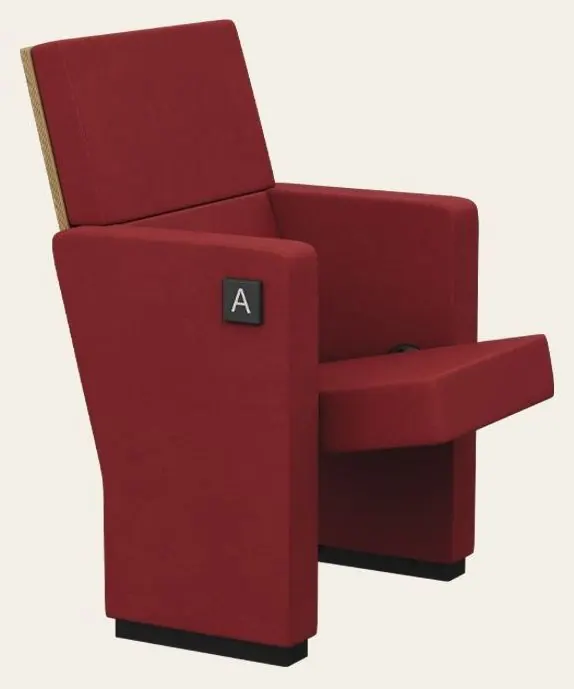

Virtus
Virtus 13205. A hall seat from the catalogue, not a renamed copy.
No centres printed on this line. They are fixed on the section.
BoxTech line
Lyon
Lyon 13108. The family name refers to the factory’s opera-house work, not to a BoxTech O2mea project list.
No centres printed on this line. They are fixed on the section.
BoxTech line
Hollywood
Hollywood 5400 for a cinema. The spacing is longer than a lecture chair.
No centres printed on this line. They are fixed on the section.
BoxTech line
Megaseat
Megaseat 9042. A wider cinema seat. The family also has stadium variants.
No centres printed on this line. They are fixed on the section.
BoxTech line
Smart
Smart 13030. Another cinema line, with fixed and moving models.
No centres printed on this line. They are fixed on the section.
BoxTech line

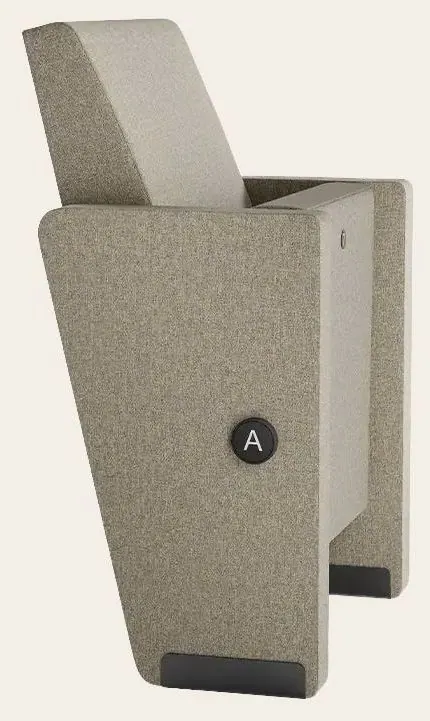

Aptum
Aptum 246 for a university rake. The family includes 247 and 248.
No centres printed on this line. They are fixed on the section.
BoxTech line
Delta
Delta 430, design associated with Josep Lluscà. For a hall where the arm shape matters.
No centres printed on this line. They are fixed on the section.
BoxTech line

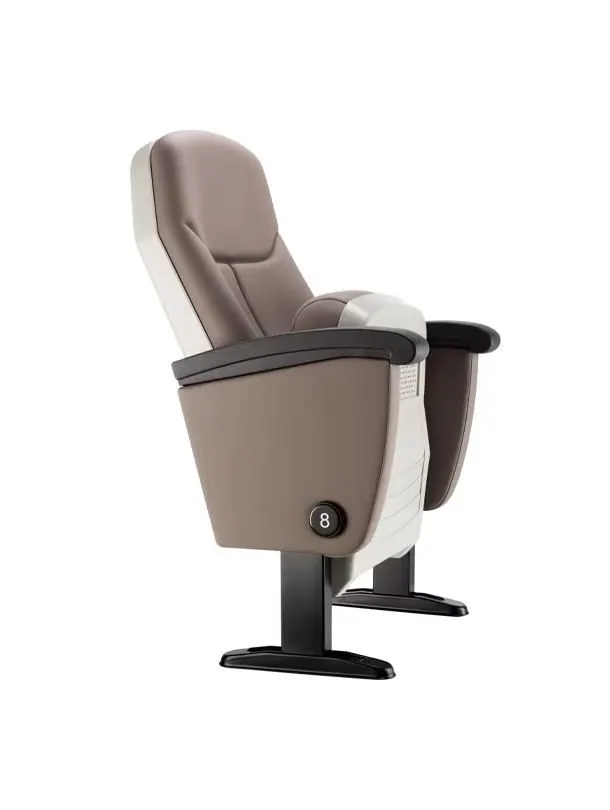

Top
Top 5036. A writing seat from the hall line, not the stadium line.
No centres printed on this line. They are fixed on the section.
BoxTech line
MAIA PL
BoxTech catalogue line. Centres are not printed on this card.
No centres printed on this line. They are fixed on the section.
Questions designers and owners ask
Is the ES-500 indoor only?
The published sheet allows indoor and outdoor, including covered and VIP zones. Tip-up is a silent spring, weight is 10 kg, centres are 48–56 cm.
Do you publish a fire grade?
No. A family may be tested to UNE-EN 12727 or EN 1021 in the factory file. The grade belongs to the build-up that has the report, not to this page.
Where is Kairos?
On the BoxTech line of this page. No centres here. The axis is on the section.
Does the chair replace the screen?
No. The person who watches is seated. The screen and the projector are a separate section at the front.
Is this a price page?
No. Weight and size are not a price. The study asks about the row, not about the catalogue colour.
Technical sources
- The published seat-family sheet
The source of centres, depth, height and weight on the cards. Not a certificate.
- The build-up test report
Any fire or durability grade. Change the fabric and the transfer stops.
- The sightline page
C-value is a literature discussion, and the code owns the aisle. The catalogue replaces neither.
Last editorial review: 2026-10-06. Review means the text was checked, not that a project was measured.
Turn the question into a brief
A study starts from room volume, use, and existing condition, not from a product name. Fill the brief and copy it.
Project study form
