Onik+

The hospitality Onik. A fuller back, and harder use than a quiet theatre seat.

Onik+ is the suite inside the arena, not the general bowl. Table and power are drawn with it when the box is hospitality or press.

Other families

Seat technical specifications — Onik+

Engineering data for design, planning and procurement. Published values only; unavailable fields are left blank.

> 470 mmSeat centres

600 mmOverall depth

262 mmDepth, seat folded

938 mmOverall height

460 mmSeat height

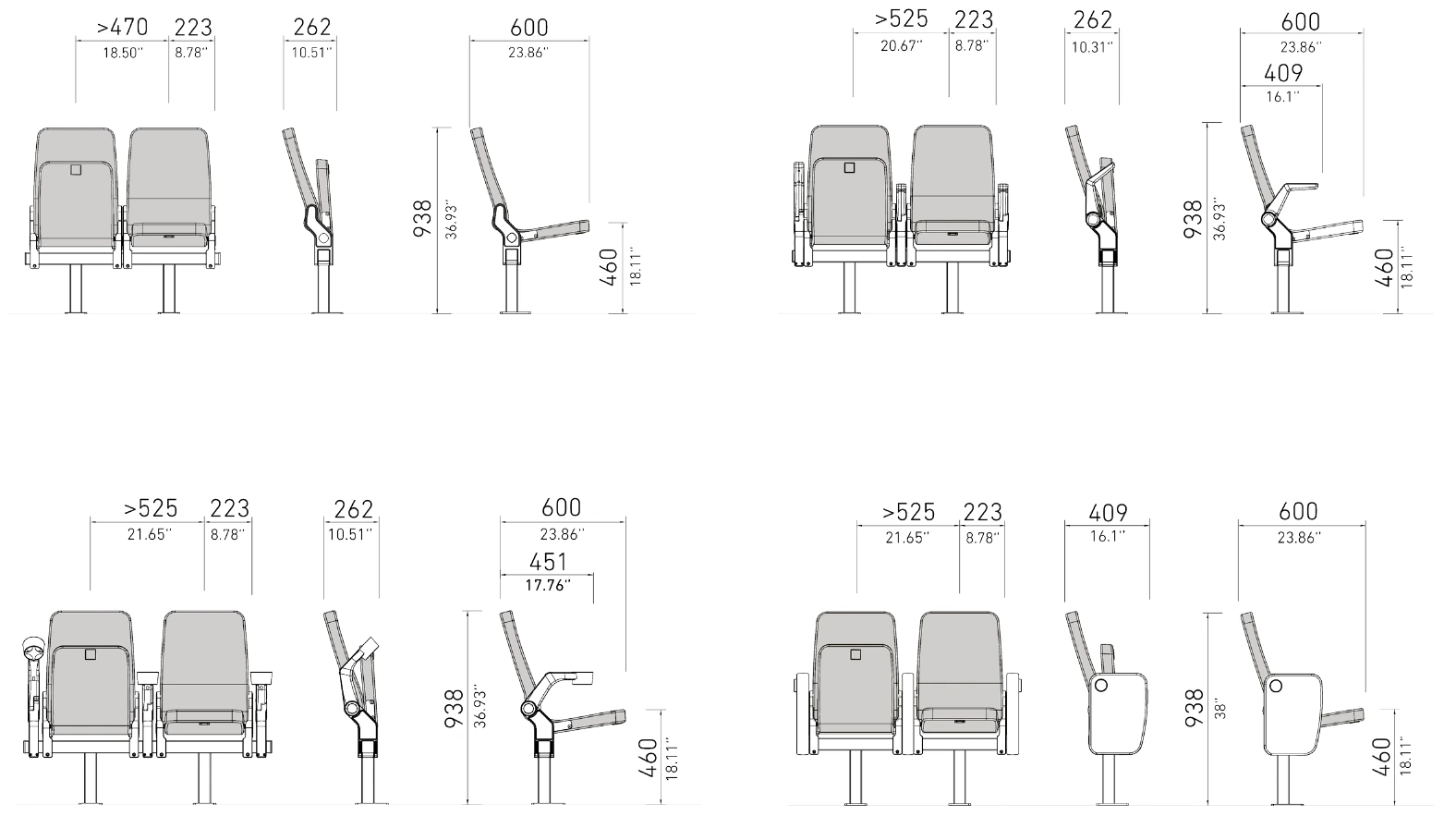

Original dimensioned technical drawing – click to enlarge

Seat	Moulded PU foam monobloc 60–65 kg/m³ with steel tube frame, flat-spring mesh and pivots; zip-off interchangeable cover; spring-assisted tip-up.
Backrest	Moulded foam 50–55 kg/m³; customisable backrest.
Side panels	50% glass-fibre polyamide sides with integral steel pivot, or upholstered fixed side panel.
Armrest	Tip-up armrest or with integrated cup holder.
Metal frame	Steel tube and plate structure, arc welded, hot-dip galvanised to EN ISO 1461, or cold galvanised plus 70–80 µm powder coat where the project requires.
Foam density	Seat: 60-65 kg/m³ · Backrest: 50-55 kg/m³

60×60 mm steel beam with adaptable clamp system; floor or riser mounting.

Fire reaction: this product complies with international standards

14 fabric ranges

Seat mounted on steel beam with clamped or welded system, adaptable between the beam and the supports
Adjustable positioning on beam
Indoor and outdoor use

Interactive engineering model

Elevations dimensioned from this seat's specification, plus a hall layout calculator with live plan and sightline section.

Front elevation

Side elevation

Schematic drawing – not to scale

Seats per row37

Rows22

Total capacity814 seats

Total rake rise5,930 mm

Max riser height340 mm

Rake angle17.4°

Plan view of rows

Side section – riser rake & sightline

Results are estimates for preliminary planning and must be verified against local fire, safety and egress codes.
