Narrow arena
A short upright depth for arenas and telescopic stands so the system can close.
Onik is for a room that changes. Upright width is calculated with the steel stand closing, not after it.
Put this model in the note| Source | BoxTech · onik |
|---|---|
| Width | Narrow upright |
| System | Telescopic |
| Noise | Checked in concert mode |
Technical specifications
Engineering data for design, planning and procurement. Published values only; unavailable fields are left blank.

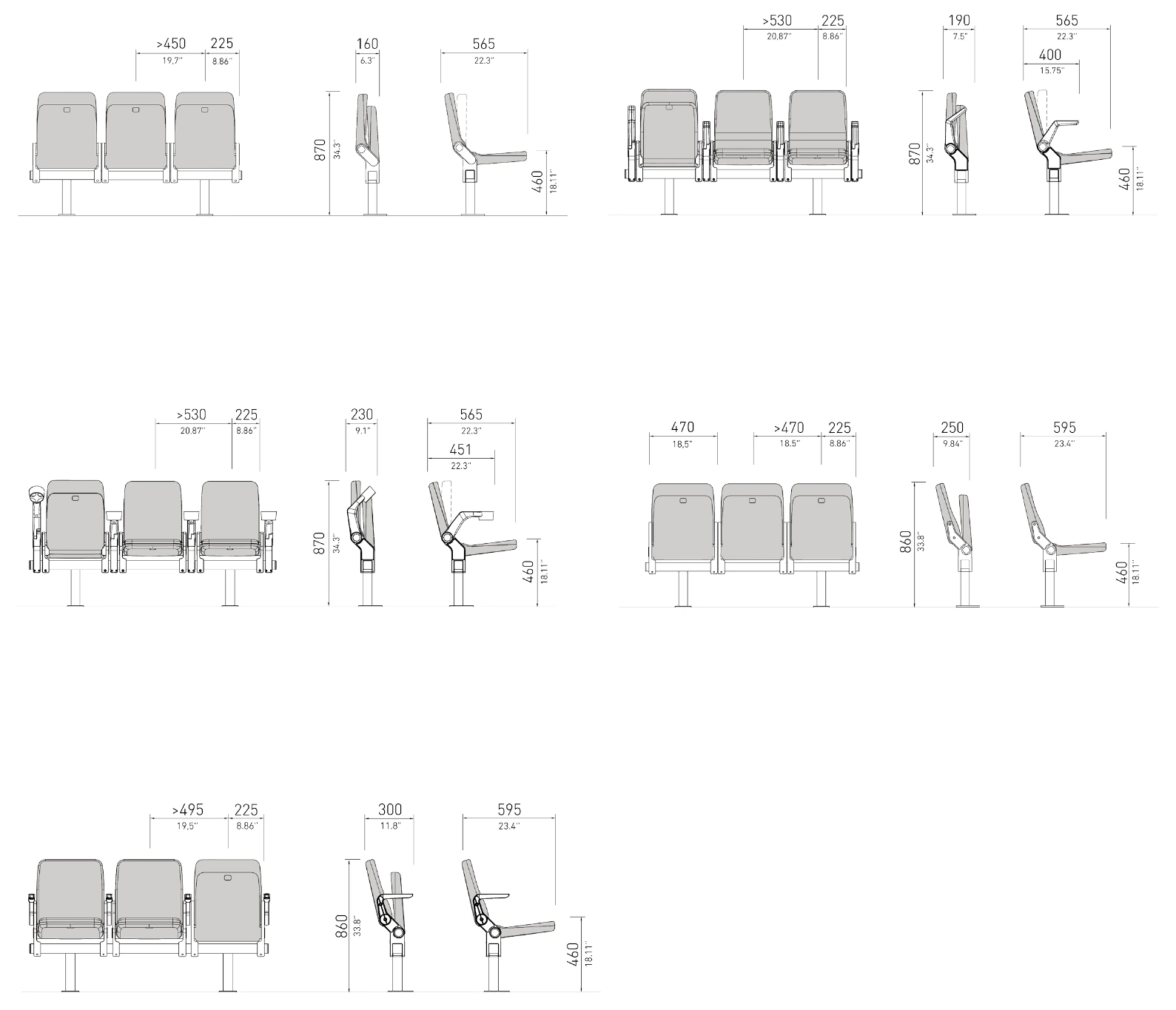

Original dimensioned technical drawing – click to enlarge
| Seat centres | > 450 mm |
|---|---|
| Overall depth | 565 mm |
| Depth, seat folded | 160 mm |
| Overall height | 870 mm |
| Seat height | 460 mm |
| Seat | Monobloc cold-moulded foam 50–60 kg/m³ with perimeter metal frame and wrinkle-free replaceable upholstery, on a 20% glass-fibre PP shell fixed with one concealed screw. Silent automatic folding by torsion springs. |
|---|---|
| Backrest | Same construction; backrest folds with the seat for a very compact footprint (160 mm folded). |
| Side panels | Supports and side panels in 50% glass-fibre polyamide with integral steel pivot; weather and UV resistant to UNE-EN ISO 4892-2. |
| Armrest | Tip-up, one-piece with integrated cup holder, or fixed armrest. |
| Metal frame | Steel tube and plate structure, arc welded, hot-dip galvanised to EN ISO 1461, or cold galvanised plus 70–80 µm powder coat where the project requires. |
| Foam density | Seat: 50-60 kg/m³ · Backrest: 50-60 kg/m³ |
60×60 mm (3 mm) steel beam with clamped or welded joints; floor, riser or mobile-system mounting; adjustable position.
14 fabric ranges
Design tool
Elevations dimensioned from this seat's specification, plus a hall layout calculator with live plan and sightline section.
Schematic drawing – not to scale
Results are estimates for preliminary planning and must be verified against local fire, safety and egress codes.
