ES-500 TT · Stadiums and arenas
ES-500 TT is in the Stadiums and arenas range of the BoxTech catalogue. Centres and tip-up depth are checked on the drawing before the count is approved. The photograph identifies the form.
Put this model in the note| Family | Stadiums and arenas |
|---|---|
| Planning centre | 500 mm |
Technical specifications
Engineering data for design, planning and procurement. Published values only; unavailable fields are left blank.

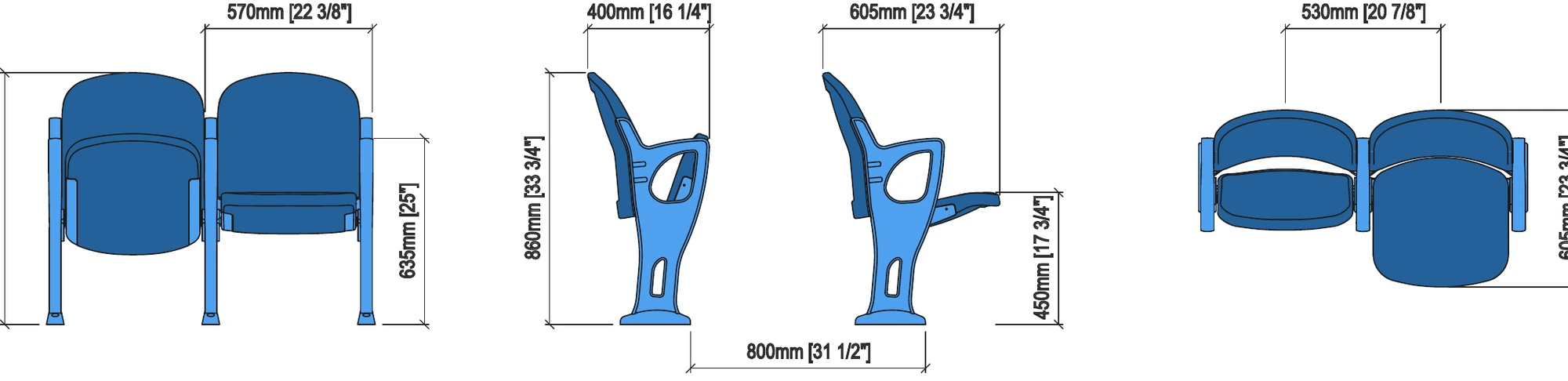

Original dimensioned technical drawing – click to enlarge
| Seat centres | 48 – 56 cm |
|---|---|
| Overall depth | 40 cm |
| Overall height | 86 cm |
| Weight | 10.40 Kg not assembled |
| Shipping volume | 0.08 m³ / unit |
| Backrest | Extrusion blow moulded in texturized high-density polyethylene. Structure fixed over an open cell polyurethane foam block fully upholstered by means of – fabric cover. It fits into the lateral parts of the side panel. Foam density, 40 Kg/m³ |
|---|---|
| Seat | Extrusion blow moulded in texturized high-density polyethylene. Structure fixed over an open cell polyurethane foam block fully upholstered by means of – fabric cover. The seat pan folds by means of an automatic noiseless maintenance-free spring. Foam density, 40 Kg/m³ |
| Side panels | Texturized injected polypropylene, reinforced with glass fibre. Concealed floor fixation system. |
| Armrest | Included in the very side panel. |
| Foam density | Seat: 40 kg/m³ · Backrest: 40 kg/m³ |
7 fabric ranges
Design tool
Elevations dimensioned from this seat's specification, plus a hall layout calculator with live plan and sightline section.
Schematic drawing – not to scale
Results are estimates for preliminary planning and must be verified against local fire, safety and egress codes.
