ROMA COMFORT V09 H · Cinema and recliners
ROMA COMFORT V09 H is in the Cinema and recliners range of the BoxTech catalogue. Centres and tip-up depth are checked on the drawing before the count is approved. The photograph identifies the form.
Put this model in the note| Family | Cinema and recliners |
|---|---|
| Planning centre | 620 mm |
Technical specifications
Engineering data for design, planning and procurement. Published values only; unavailable fields are left blank.

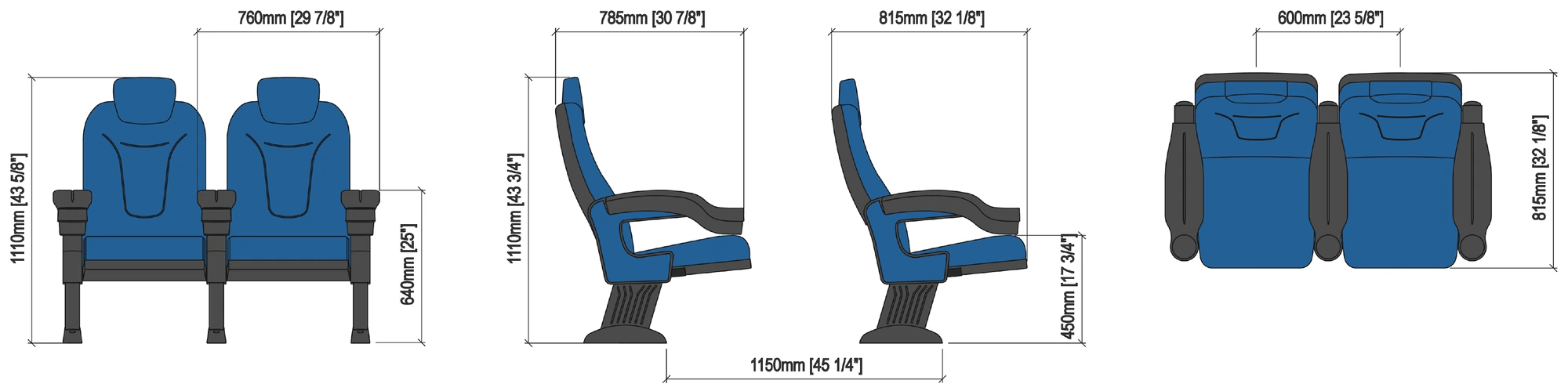

Original dimensioned technical drawing – click to enlarge
| Seat centres | 58-63 cm |
|---|---|
| Overall depth | 81 cm |
| Overall height | 100 + 15 cm |
| Weight | 20.30 Kg |
| Shipping volume | 0.210 m³ |
| Backrest | Cold moulded polyurethane foam, which wraps an injected polypropylene frame completely. All this structure is protected by – texturized injected polypropylene seat shell. Optional headrest with seat shell. Polyurethane density 55 Kg/m³ |
|---|---|
| Seat | Cold moulded polyurethane foam, which wraps an injected polypropylene frame completely. All this structure is protected by – texturized injected polypropylene seat shell. Fixed in open position, anchored to the side panel by means of steel plates. Polyurethane density 65 Kg/m³ |
| Side panels | Texturized injected polypropylene, 80mm End row panels completely upholstered. Concealed floor fixation system. |
| Armrest | Texturized injected polypropylene, including integrated cupholder. |
| Foam density | Seat: 65 kg/m³ · Backrest: 55 kg/m³ |
6 fabric ranges
Design tool
Elevations dimensioned from this seat's specification, plus a hall layout calculator with live plan and sightline section.
Schematic drawing – not to scale
Results are estimates for preliminary planning and must be verified against local fire, safety and egress codes.
