PRINCE RECLINER R10 · Cinema and recliners
PRINCE RECLINER R10 is in the Cinema and recliners range of the BoxTech catalogue. Centres and tip-up depth are checked on the drawing before the count is approved. The photograph identifies the form.
Put this model in the note| Family | Cinema and recliners |
|---|---|
| Planning centre | 620 mm |
Technical specifications
Engineering data for design, planning and procurement. Published values only; unavailable fields are left blank.

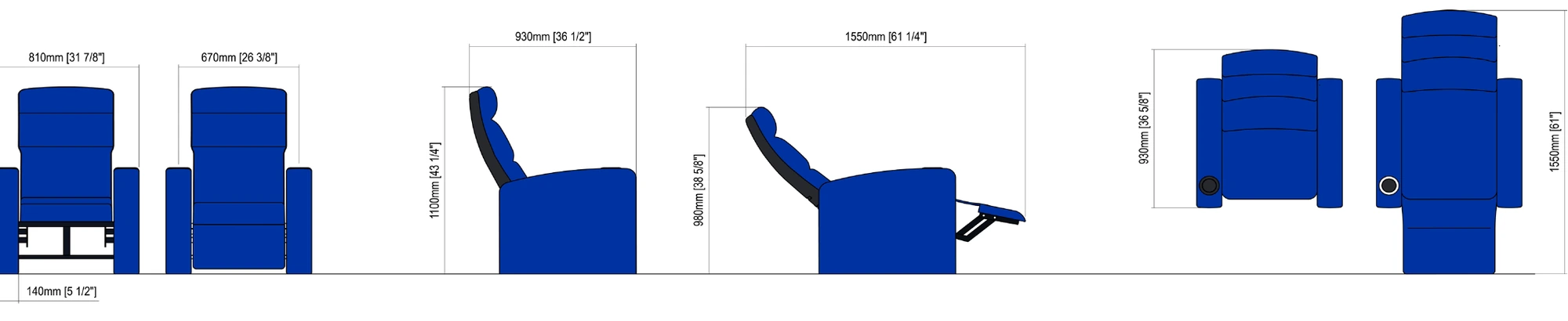

Original dimensioned technical drawing – click to enlarge
| Seat centres | 67 cm |
|---|---|
| Overall depth | 93 – 155 cm |
| Overall height | 110 cm |
| Weight | 68 Kg |
| Shipping volume | 0.210 m³ |
| Backrest | Cold moulded polyurethane foam, which wraps an injected polypropylene frame completely. It is later upholstered by means of – fabric cover. All this structure is protected by – texturized injected polypropylene seat shell. Foam density: 55 Kg/m³. |
|---|---|
| Seat | Cold moulded polyurethane foam, which wraps an injected polypropylene frame completely. It is later upholstered by means of – fabric cover. Foam density: 65 Kg/m³. The seat is fixed in the open position, anchored to the side by means of metal plates. With electric reclining system; the backrest tilts backwards and the seat moves forward by pressing the button that raises the footrest. Including individual electric motor. |
| Side panels | Wood structure completely upholstered. Concealed floor fixation system. Possibility of adding cupholder and table. |
| Foam density | Seat: 65 kg/m³ · Backrest: 55 kg/m³ |
6 fabric ranges
Design tool
Elevations dimensioned from this seat's specification, plus a hall layout calculator with live plan and sightline section.
Schematic drawing – not to scale
Results are estimates for preliminary planning and must be verified against local fire, safety and egress codes.
